Flux EE5 SMD Current Sense Transformer 1479-01
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
14790101-1-B Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
Certificate
Test Data by SN
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire
max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7

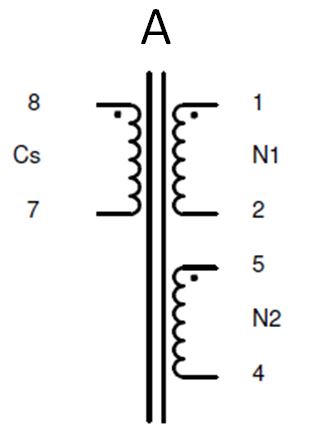

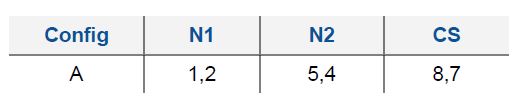

Ratio
[N1,N2]
[N1,N2]
1:50:50
Ratio
[N1,N2]
[N1,N2]
1:100
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
Flux EE5 SMD Current Sense Transformer 1479-01
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
14790101-1-B Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
Certificate
Test Data by SN
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7
Ratio
[N1,N2]
[N1,N2]
1:50:50
Ratio
[N1,N2]
[N1,N2]
1:100
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
