Flux EE5 SMD Current Sense Transformer 1479-01
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
ESCC320101301F14790102-1 Qualified part
Benefits
Quality Levels

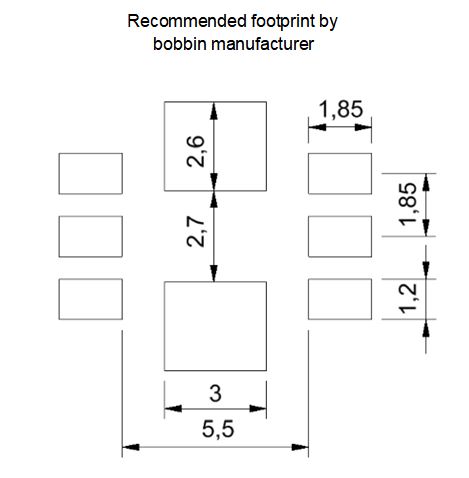

Small footprint
Low mass
Surface mount
High primary current
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
ESCC Certificate
Test Data by SN
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire
max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7

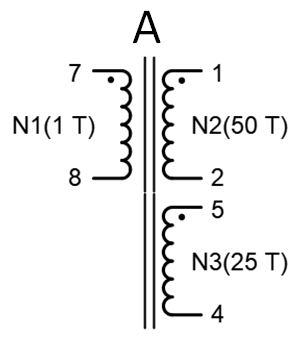

Ratio
[N1,N2]
[N1,N2]
1:25:50
Ratio
[N1,N2]
[N1,N2]
1:75
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
Flux EE5 SMD Current Sense Transformer 1479-01
The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. This 1:75 with split secondary (25/50) is an alternative to the 1:100 only available in MIL-STD-981 Class B.
ESCC320101301F14790102-1 Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
ESCC Certificate
Test Data by SN
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire max. current
ESCC-Q-ST-30-11
Specifications
CS Max Current
[A]
[A]
5.6
CS DCR at 20° C
[mOhm]
[mOhm]
0.7
Ratio
[N1,N2]
[N1,N2]
1:25:50
Ratio
[N1,N2]
[N1,N2]
1:75
Max weight
[g]
[g]
1
Box measure
[mm3]
[mm3]
294
