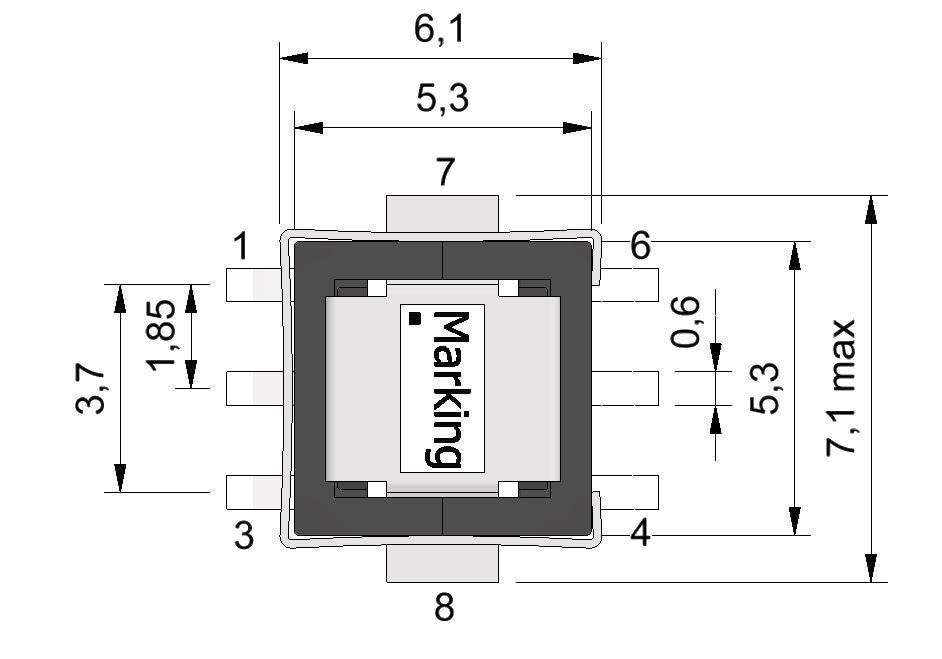

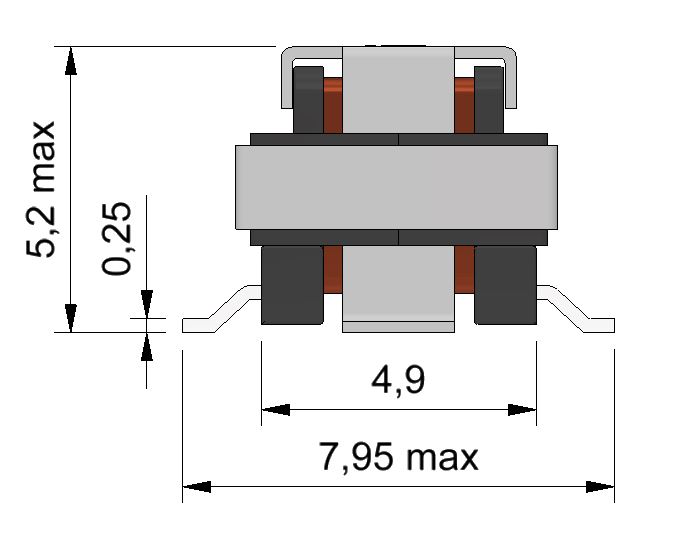

The 1479 EE5 SMD Current Sense Transformer is the smallest SMD part of its type.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. As an exeption the 1489 EE5 1:100 is available only in Space Grade as MIL-STD-981 Class B as it contains a wire smaller than Ø0.1mm and not allowed in ESCC3201 or MIL-STD-981 Class S.
14790101-1-B Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
Certificate
Test Data
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire max. current
ESCC-Q-ST-30-11
Component specifications:
ESCC Part Number
Ratio
[CS,N1,N2]
CS Max
Current
[A]
