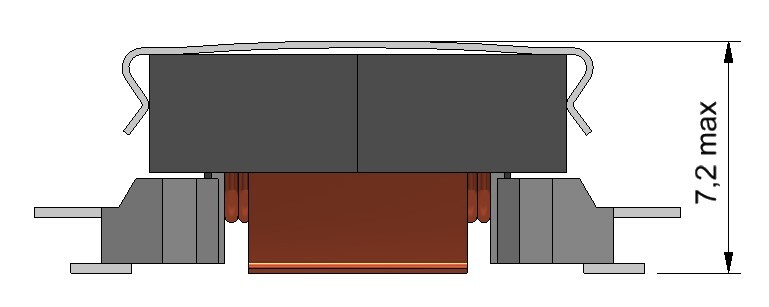

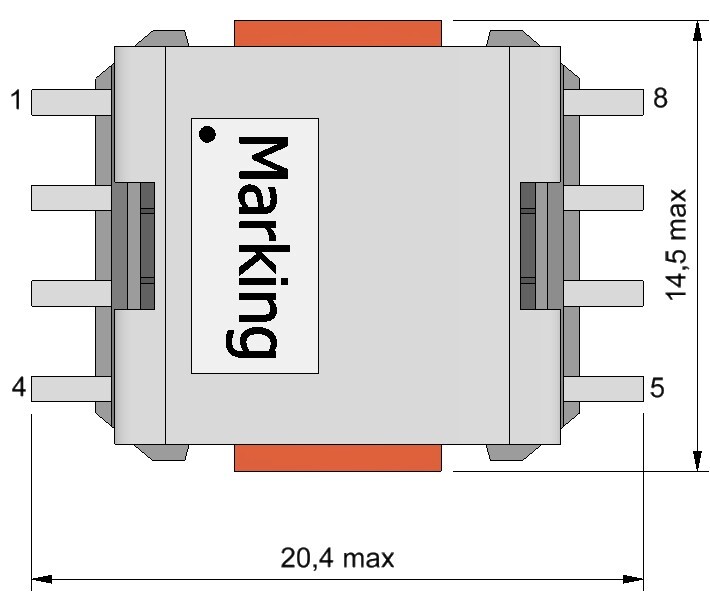

The 1479 EFD12 SMD Current Sense Transformer is rated to 20A available in four ratios.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
Flux designs and manufactures in accordance with ESCC3201 and MIL-STD-981. The product represented in this data sheet is ESA Qualified (QPL) and will be delivered with an extensive ESCC data package containing test results by serial number. Products are manufactured, tested and inspected by ESA certified staff.
ESCC320101301F14790301-1 Qualified part
Benefits
Quality Levels
Small footprint
Low mass
Surface mount
High primary current
Multiple ratios available
ESCC3201/013
MIL-STD-981 Class S
MIL-STD-981 Class B
HiRel/MIL IPC-A610 III
Included
Additional
ESA Qualified (QPL)
ESCC Inspection
ESCC Magnetic Sheet
ESCC Certificate
Test Data by SN
X-Ray Inspection
Lot Acceptance Test
Qualification test
Wire max. current
ESCC-Q-ST-30-11
Component specifications:
ESCC Part Number
Ratio
[CS,N1,N2]
CS Max
Current
[A]
